PERFORMANCES
• Types of steel: 500 to 1600
N/sqmm (up to 530 Hb)
•Shaving capacity: 5,5 to 16
mm (0,217” – 0,63”) diameter
•Working speed: 60 to 130
m/min (196 – 426 feet/min) according to diameter and type of steel
•Tolerances on shaved wire:
+-0,05 mm (0,002”) on diameter, 0,08 mm (0,003”) roundness, roughness 0,4 Ra
(16 cla)
•Coil head not shaved: 14 m
(46’)
•Tools consumption: one set of
12 plates produces 50 to 80 tons
FEATURES
•Power: 175 kW (235 hp)
•Installation dimensions: 24 x 6
m (78’ x 19’)
•Height: 2,50 m (8’)
•Weight: 40.000 kg (88.000
pounds)
Indicative production per year
on 3 shifts with 2500 kg (5500 pounds) coils of spring steel
|
Wire
Diameter
(mm)
|
7
|
9
|
10,5
|
11,5
|
13,5
|
15,5
|
|
Produced
Tons/Year
|
5.100
|
7.186
|
11.411
|
11.411
|
14.000
|
14.000
|
|
DETAILS
PICTURES
|
DESCRIPTION
|
|
|

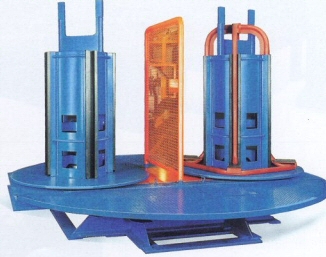

Double
Rewinding reel
|
|
|
Introduction
Unit
|
|
|
Draft
Gear Unit D.C. Powered for quick
speed variation. Roller clamping
hydraulically powered
|
|
|
Shaving
Unit
|
|
