Centerless Grinders and Special Machine Tools

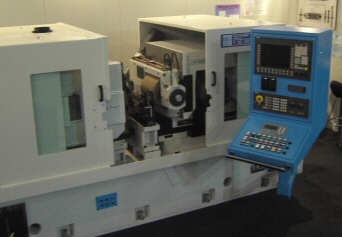

BMS Centerless Grinders
TECHNICAL FEATURES
|
|||||
MODELLS
|
R 50/CF
|
R 90/CF
|
R 130/CF
|
||
|
|
|
|
|
|
|
|
Work Diameter Range (mm) |
1-80
|
1-150
|
1-100
|
3-400
|
3-250
|
|
|
|
|
|
||
GRINDING
WHEEL DIMENSIONS
|
|
|
|
||
|
Maximun external diameter (mm) |
508
|
610
|
660
|
610
|
660
|
|
Minimum external diameter (mm) |
380
|
420
|
510
|
440
|
440
|
|
Internal
Diameter (mm) |
254-305
|
305
|
305
|
||
|
Width (mm) |
250
|
350
|
508-600
|
||
|
|
|
|
|
||
CONTROL
WHEEL DIMENSIONS
|
|
|
|
||
|
Maximun external diameter (mm) |
305
|
305
|
355
|
355
|
|
|
Minimum external diameter (mm) |
230
|
230
|
240
|
240
|
|
|
Internal
Diameter (mm) |
152,4
|
152,4
|
127-152,4
|
||
|
Width (mm) |
250
|
350
|
508-600
|
||
|
|
|
|
|
||
GENERAL
|
|
|
|
||
|
Cutting Speed (m/s) |
33-60
|
33-60
|
33-60
|
||
|
Control Wheel round per minute (Variable) |
0-300
|
0-300
|
0-300
|
||
|
Control Wheel round per minute (in dressing) |
300
|
300
|
300
|
||
|
Grinding Wheel Drive Motor (kW) |
15-18
|
45-55
|
45-75-90-110
|
||
|
Control Wheel Drive Motor (Nm) |
10
|
22
|
42-58
|
||
|
Machine Dimension (Included Cabinet) (mm) |
2150x3400xH2200 |
2200x4070xH2260
|
2200x4500xH2425
|
||
|
Wheight (kg)
|
8000
|
13000
|
17000
|
||
